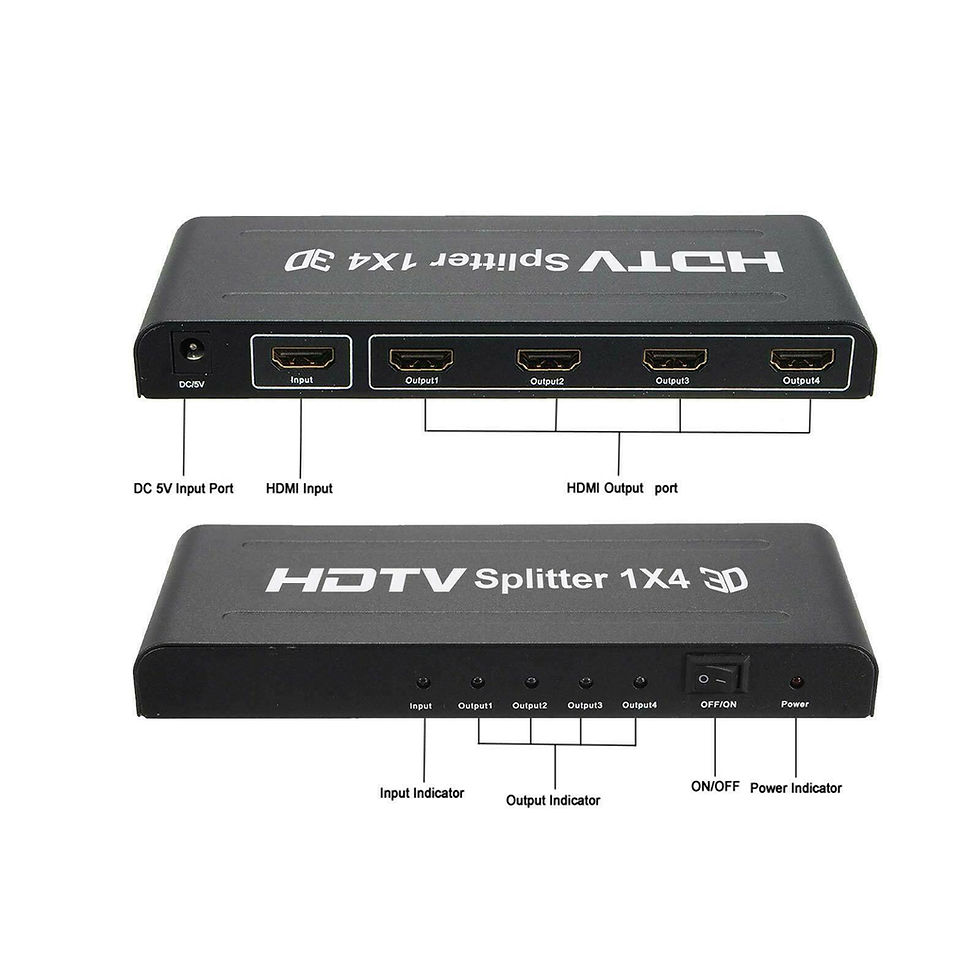

Features:

• This one will Duplicate and boost the HDMI source from 1 source to 4 outputs.

• Help to Enhance HD video signals over long distance broadcasting smoothly.

• Supports 3D(All units connected to the splitter outputs must support 3D).

• Support audio format: DTS-HD/ Dolby-tureHD/ LPCM7.1/ DTS/ Dolby-AC3/ DSD.

• Support video color format: 24bit/deep color 30bit/36bit.

• Support rack mounting kit and wall mounting kit version.

• Simple appearance looks decent and elegant.

• Support plug & play, Compact size, easy to carry.

Specification:

• Input: 1 Way

• Output 4 ways

• Dimension(L x W x H): 176x67x21(mm)

• Input/ Output TMDS signal: 0.5-1.5Voltsp-p(TTL)

• Input/ Output DDC signal: 5Voltsp-p(TTL)

• HDMI version: HDMI 1.3b

• HDCP version: HDCP1.2

• Max tate:6.75Gbps

• HDMI Resolution: 1080p,1080i, 720p, 576p, 576i,480p, 480i

• Input cable distance: ≤10m AWG26 HDMI 1.3 standard cable

• Output cable distance: ≤10m AWG26 HDMI 1.3 standard cable

• Max bandwidth: 225MHz

• Single link range: 1920 x 1080

• Max working current: 500mA

• Power adapter format: Input: AC(50/60HZ) 100V-240V,Output: DC 5V/1A

• Connector: HDMI type A standard 19 pins Female

Package Included:

• 1 x HDMI Splitter

• 1 x USB Cable
